Reliability     Safety     Capacity

S6-EH3P(80-125)K10-NV-YD-H

80K/100K/125K

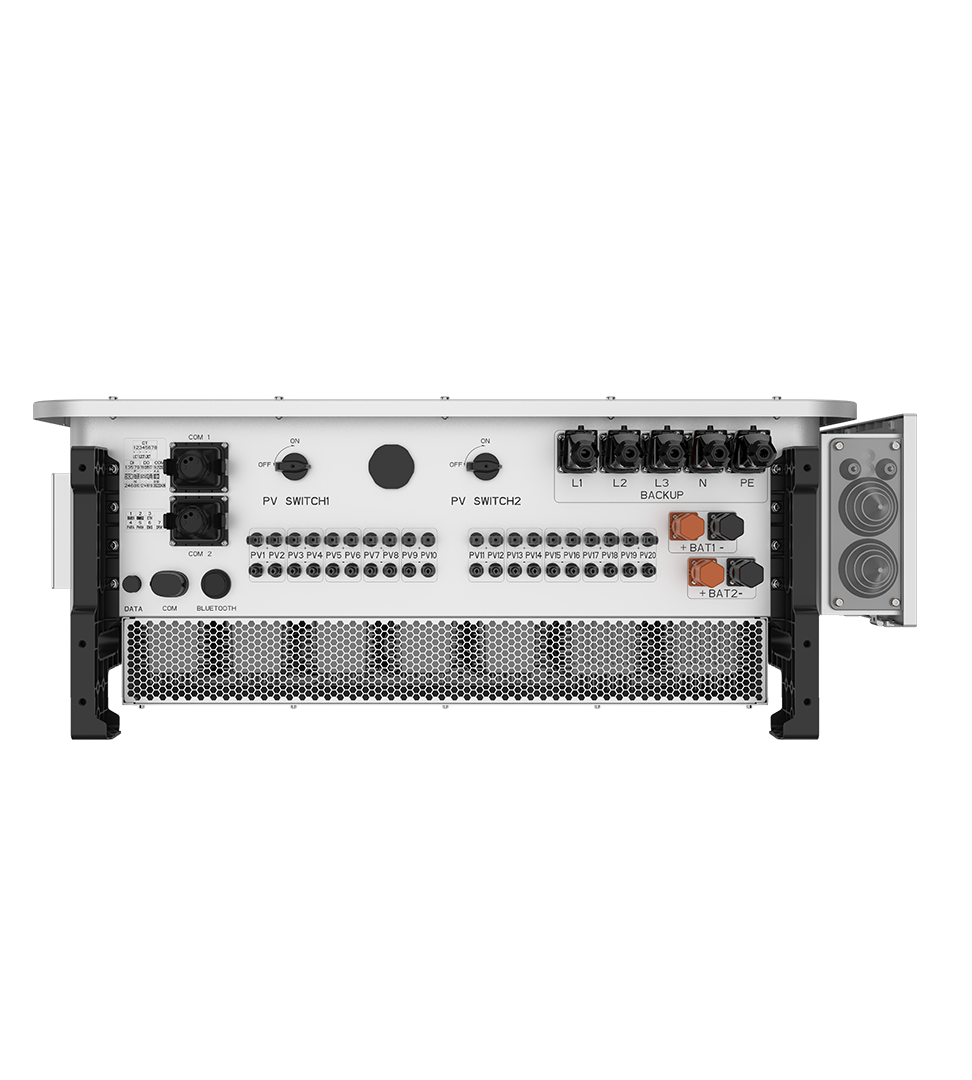

Introducing the S6-EH3P(80-125)K10-NV-YD-H Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 100A+100A across two independently controlled battery ports, has 10 integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(80-125)K10-NV-YD-H series supports parallel operation of up to six units, with a backup port capable of supporting 2.0 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.

Three Phase High Voltage Energy Storage Inverter

Leading Features

7 Unique Advantages
Supports PV input up to 200% of the inverter's rated DC power, maximising solar utilisation
Supports up to 21A PV input current, compatible with the latest high-power PV modules
Compatible with 100-314Ah battery cells, helping reduce energy storage system costs
Supports battery charge/discharge current up to 200A, ideal for peak-valley arbitrage and frequency regulation applications
Two independent battery connections, allowing more flexible system configuration
AI-Powered & VPP-Ready - maximise savings, unlock additional income
7-inch industrial-grade screen, providing a larger, user-friendly interface for local operation
3 Leading Advantages
Supports DC and AC coupling for PV, allowing flexible system expansion and retrofitting
Smart port enables multiple energy source inputs, including grid-tied inverters, diesel generators, and wind turbines
Supports up to 10 units in parallel. For systems with more than 6 units, use of a Solis power distribution cabinet is recommended

Download
Datasheet_S6-EH3P(80-125)K10-NV-YD-H_GBR_V1.6_202508
Solis_certificate_IEC_61000-6-2(-4)_IEC_62920_IEC(TS)_61000-3-2(-3)(-11)(-12)(-4)(-5)_S6-EH3P(75-125)K-NV-YD-H(-ND-H)_S6-EH3P(60-75)K-LV-YD-H(-ND-H)_EMC_V01
Solis_certificate_IEC_EN_62109-1(-2)_S6-EH3P(75-125)K-NV-YD-H(-ND-H)_S6-EH3P(60-75)K-LV-YD-H(-ND-H)_Safety_V01
Solis_certificate_EN_62109-1(-2)_S6-EH3P(75-125)K-NV-YD-H(-ND-H)_S6-EH3P(60-75)K-LV-YD-H(-ND-H)_Safety_V01
