Reliability     Safety     Capacity

S6-EH3P(29.9-50)K-H

29.9K/30K/40K/50K

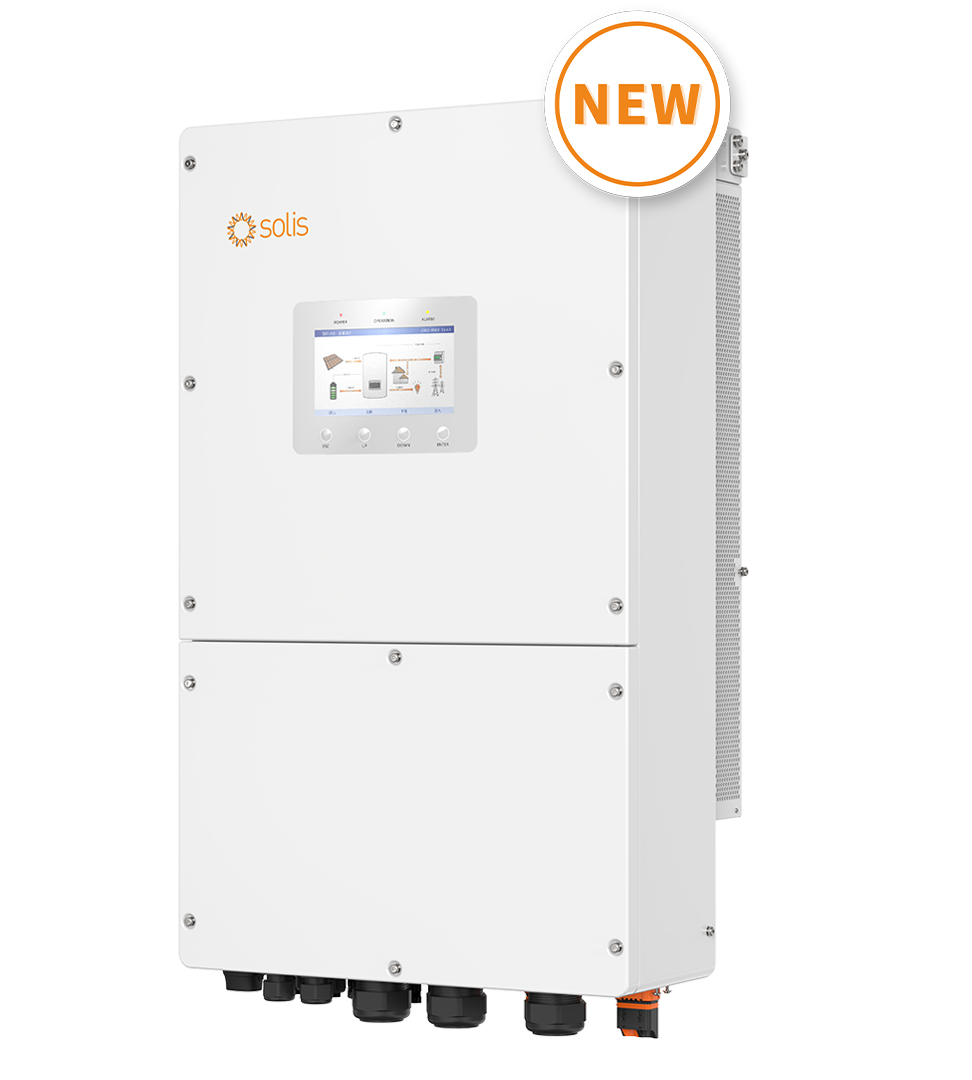

Introducing the S6-EH3P(29.9-50)K-H Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(29.9-50)K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.

Three Phase High Voltage Energy Storage Inverter

Leading Features

8 Unique Features
Compatible with 100-280Ah battery modules
Supports faster charging with battery current up to 140A
Powerful backup overload capability – 160% overload
Supports 2 independent battery connections for flexible configuration
7-inch large screen uses U.S.-made ZEITLER industrialgrade components
Supports a wide power range of generator connections from 10kVA to 50kVA
Supports max 20A PV input current, perfect match for high power PV modules
Usable PV power up to 200% inverter rated power, to improve the utilization of PV generation
6 Leading Features
Seamless on grid/off grid switching time <10ms
Supports battery reserve function in multiple scenarios
Smart Load Prioritizing – Extending support for critical loads
Support max 10 pcs in parallel mode, >6 pcs recommend Solis power distribution cabinet
Supports flexible PV connection through DC and AC coupling for retrofitting and expanding
SmartLoad/GEN/INV port - Flexible connection of multiple energy sources such as Grid-tied inverter, diesel generator, wind turbines, etc.


Installation video

Installation video

Download
Datasheet_S6-EH3P(29.9-50)K-H_Global_V2.4_202506
Type_A-S6-EH3P(29.9-50)K-H(Applicable in Switzerland)
CE_S6-EH3P(29.9-50)K-H
Solis_certificate_TOR R25_S6-EH3P(29.9-50)K-H(-H-ND)&S6-EH3P30K-H-LV&S6-EH3P(20-30)K-H-LV-ND_Austria_V02
Solis_certificate_C 10-11_S6-EH3P(29.9-50)K-H(-H-ND)&S6-EH3P30K-H-LV_Belgium_V01
Solis_certificate_DEWA_S6-EH3P(29.9-50)K-H(-H-ND)_Dubai_V01
Solis_certificate_EN 50549-1&EN 50549-10_S6-EH3P(29.9-50)K-H(-H-ND)&S6-EH3P30K-H-LV&S6-EH3P(15-30)K-H-LV-ND_EUR_V01
Solis_certificate_EN 50549-2&EN 50549-10_S6-EH3P(29.9-50)K-H(-H-ND)&S6-EH3P30K-H-LV&S6-EH3P(15-30)K-H-LV-ND_EUR_V01
Solis_certificate_IEC&EN 62477-1_S6-EH3P(29.9-50)K-H&S6-EH3P30K-H-LV_safety_V01
Solis_certificate_IEC&EN 62109-1(-2)_S6-EH3P(29.9-50)K-H(-ND)&S6-EH3P30K-H-LV&S6-EH3P(15-30)K-H-LV-ND_safety_V03
Solis_certificate IEC_61000-6-2(-4)&IEC_61000-3-2(-3)(-11)(-12)&IEC_62920_S6-EH3P(29.9-50)K-H(-H-AU)(-H-ND)(-H-ND-AU)&S6-EH3P(15-30)K-H-LV-ND&S6-EH3P30K-H-LV_EMC_V04
Solis_certificate_EN 62109-1(-2)_S6-EH3P(29.9-50)K-H(-ND)&S6-EH3P30K-H-LV&S6-EH3P(15-30)K-H-LV-ND_safety_V03
Solis_certificate_EN IEC 61000-6-2(-4)&EN 55011&EN 62920&EN 301489&EN 300328&EN 50663&EN 62109_S6-EH3P(29.9-50)K-H&S6-EH3P30K-H-LV_RED_V01
Solis_Manual_S6-EH3P(29.9-50)K-H_EUR_V1.2(20250630)
Solis_Manual_S6-EH3P(29.9-50)K-H_EUR_RO_V1.1(20250321)
Solis_Leaflet_Battery_matching_S6-EH3P(29.9-50)K-H_V1.7_202507
