Reliability  Safety  Capacity

S6-EH3P(7-9)K02-LV-YD-L

7K/8K/9K

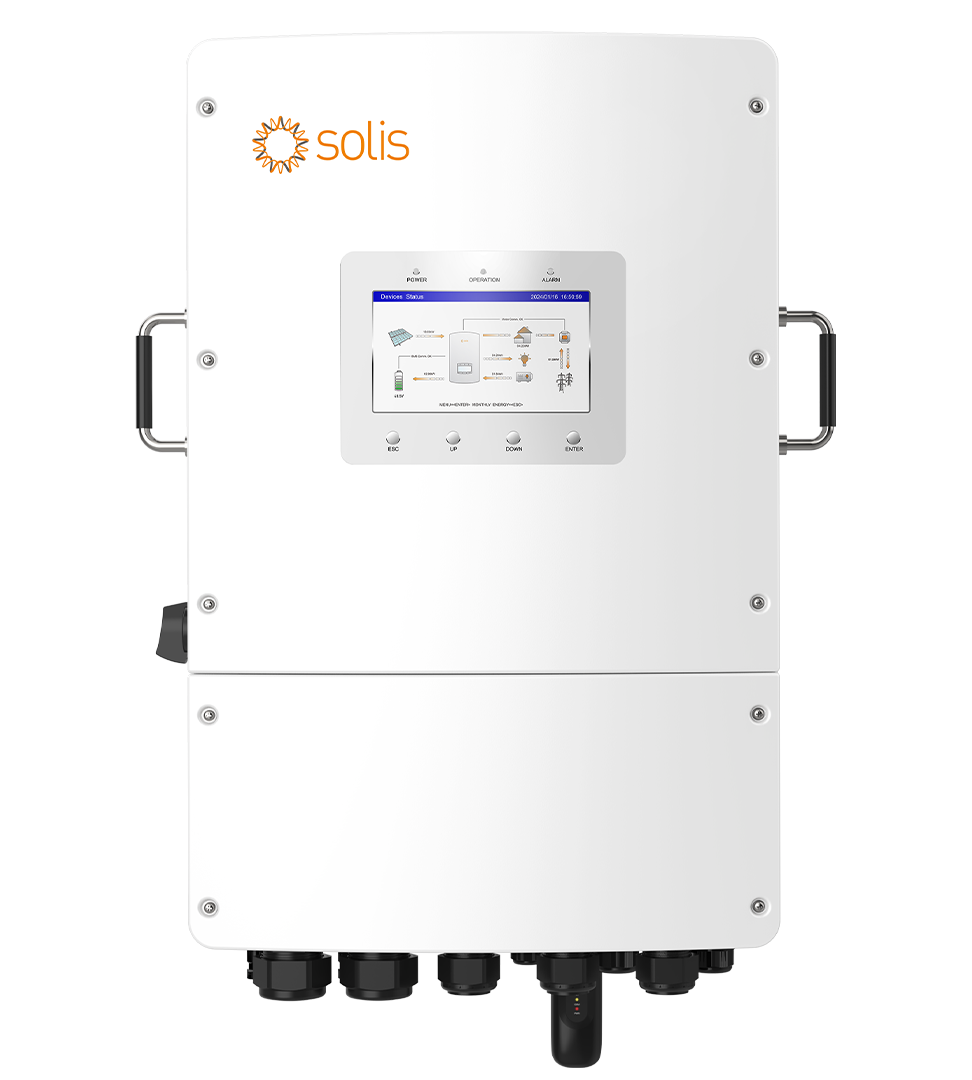

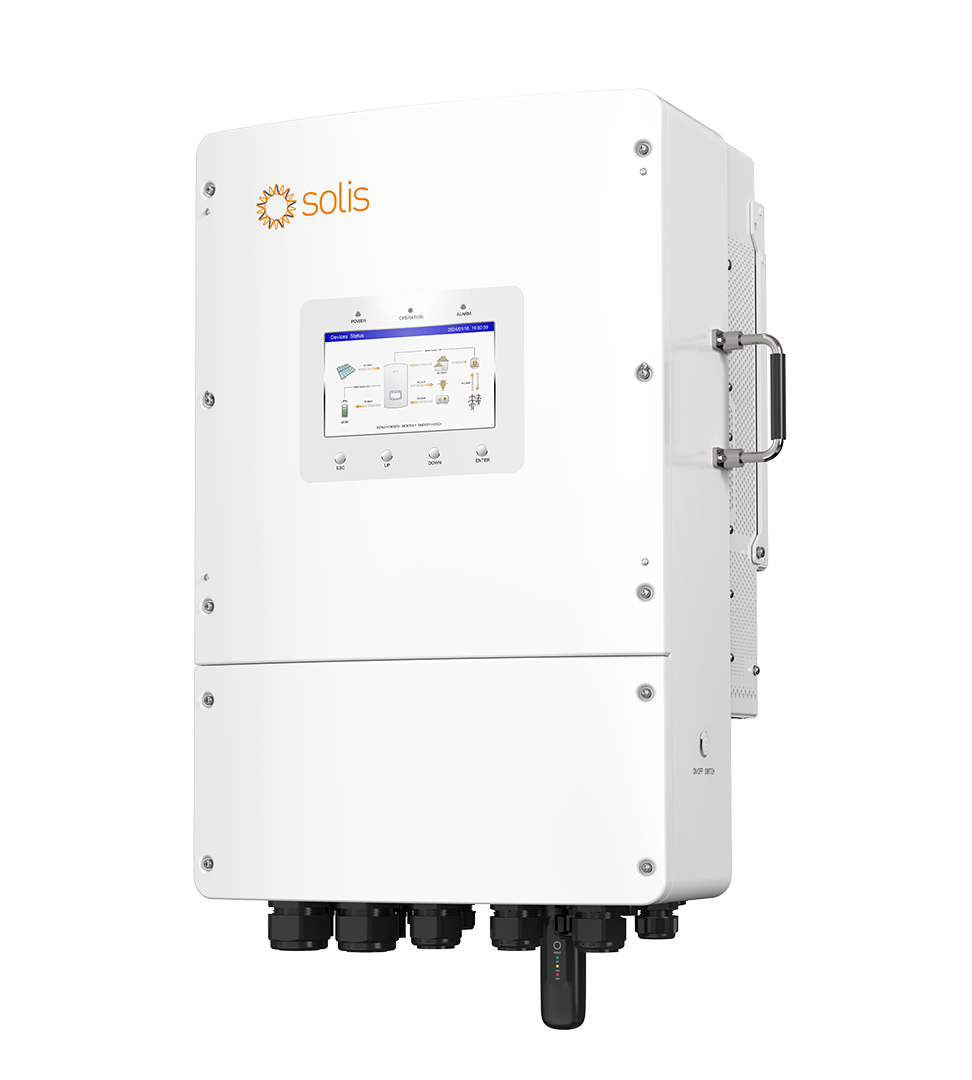

S6-EH3P(7-9)K02-LV-YD-L string hybrid inverter is a cost-effective option for residential home,which with three-phase 230VAC grid need install PV energy storage plants. The products are lightweight, efficient, feature-rich, and available in a variety of power models,and support 40~60V lead-acid or lithium batteries, and compatible with most mainstream battery brands, convenient for customers to flexibly choose batteries according to budget; In addition, it also includes independent Smart ports,  UPS level switching, supporting three-phase unbalanced load and half-wave load, etc.  To help users create a more economical and intelligent zero-carbon PV energy storage solution.

Three Phase Low Voltage Energy Storage Inverter

Leading Features

Smart Energy Management
Seamless integration with VPP and EMS platforms for enhanced energy optimization
High Performance
Switching time < 10ms
Supports 100% three-phase unbalanced output
Max. 200% overload capability in off-grid mode
160% PV input capacity to maximize solar energy utilization

Flexible & Scalable
Support max. 6 inverters in parallel
Compatible with mainstream lithium and lead-acid batteries
Easily expand system capacity using parallel connections and AC coupling
Simple & Fast Configuration
Bluetooth app support for quick and easy setup
7-inch LCD screen for an intuitive user experience

Download
Datasheet_S6-EH3P(7-9)K02-LV-YD-L_Global_V2.4_202506
