Reliability     Safety     Capacity

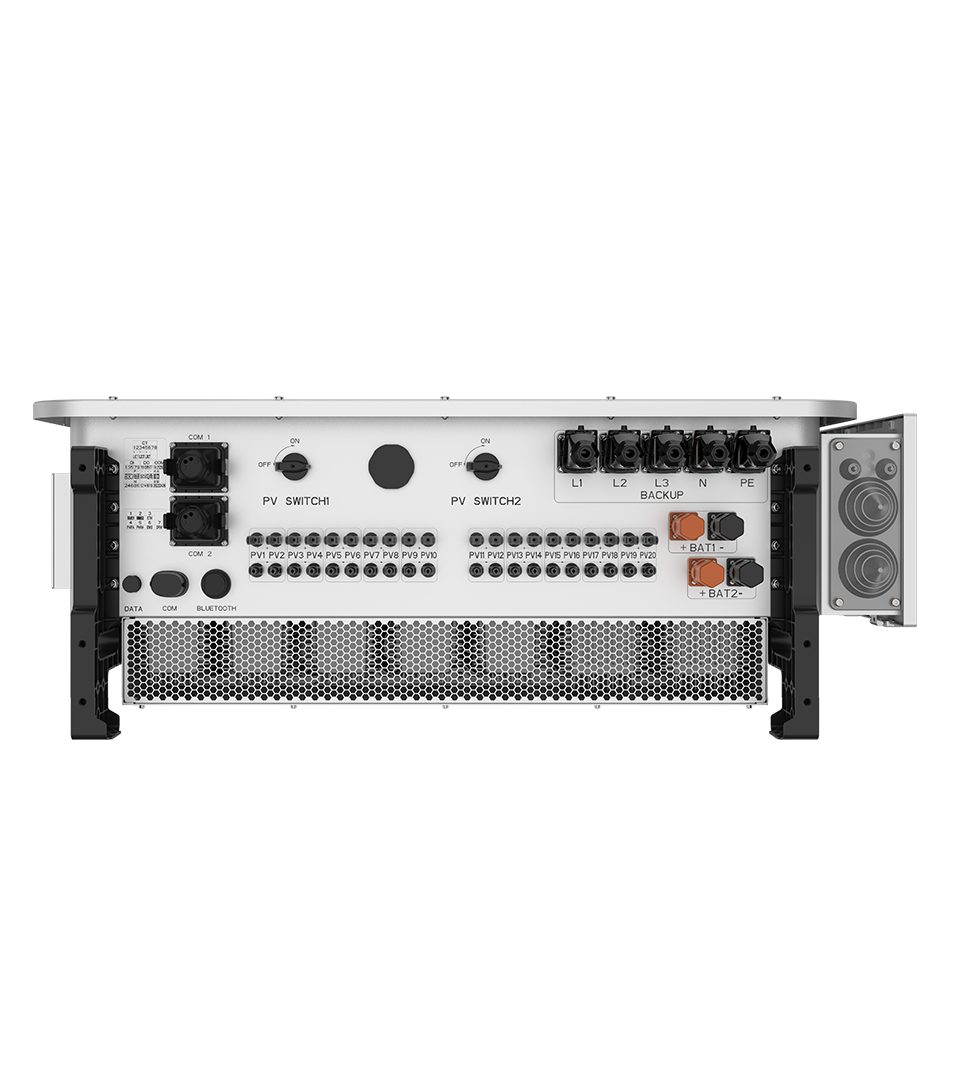

S6-EH3P(75-125)K10-NV-YD-H

75K/80K/100K/125K

Introducing the S6-EH3P(75-125)K10-NV-YD-H Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 100A+100A across two independently controlled battery ports, has 10 integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(75-125)K10-NV-YD-H series supports parallel operation of up to six units, with a backup port capable of supporting 2.0 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.

Three Phase High Voltage Energy Storage Inverter

Leading Features

8 Unique Features
Compatible with 100-314Ah battery modules
Supports faster charging with battery current up to 200A
Powerful backup overload capability – 160% overload
Supports 2 independent battery connections for flexible configuration
7-inch large screen uses U.S.-made ZEITLER industrialgrade components
Supports max 21A PV input current, perfect match for high power PV modules
Supports a wide power range of generator connections from 25kVA to 125kVA
Usable PV power up to 200% inverter rated power, to improve the utilization of PV generation
6 Leading Features
Seamless on grid/off grid switching time <10ms
Supports battery reserve function in multiple scenarios
Smart Load Prioritizing – Extending support for critical loads
Supports flexible PV connection through DC and AC coupling for retrofitting and expanding
Support max 10 pcs in parallel mode, >6 pcs recommend Solis power distribution cabinet
SmartLoad/GEN/INV port - Flexible connection of multiple energy sources such as Grid-tied inverter, diesel generator, wind turbines, etc.

Download
Datasheet_S6-EH3P(75-125)K10-NV-YD-H_GLOBAL_V2.4_202506
