Reliability Safety Capacity

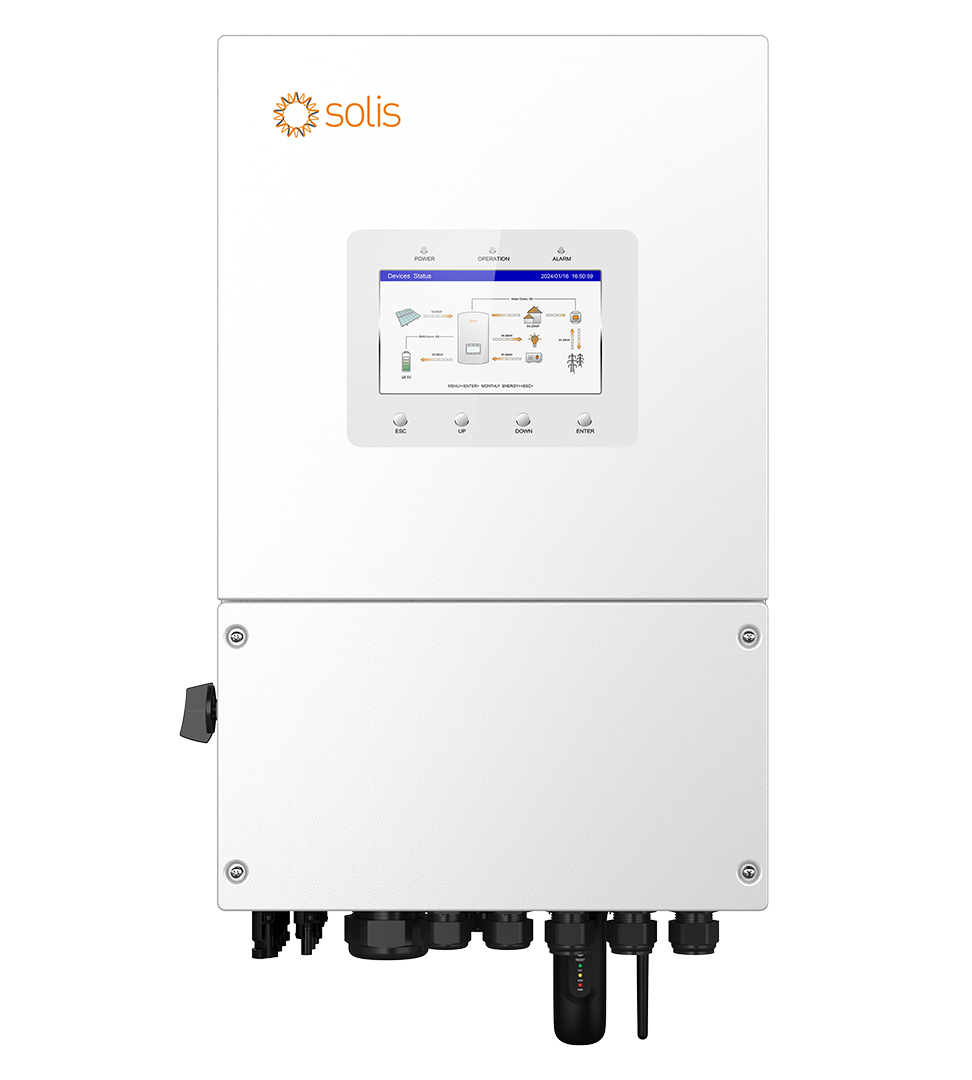

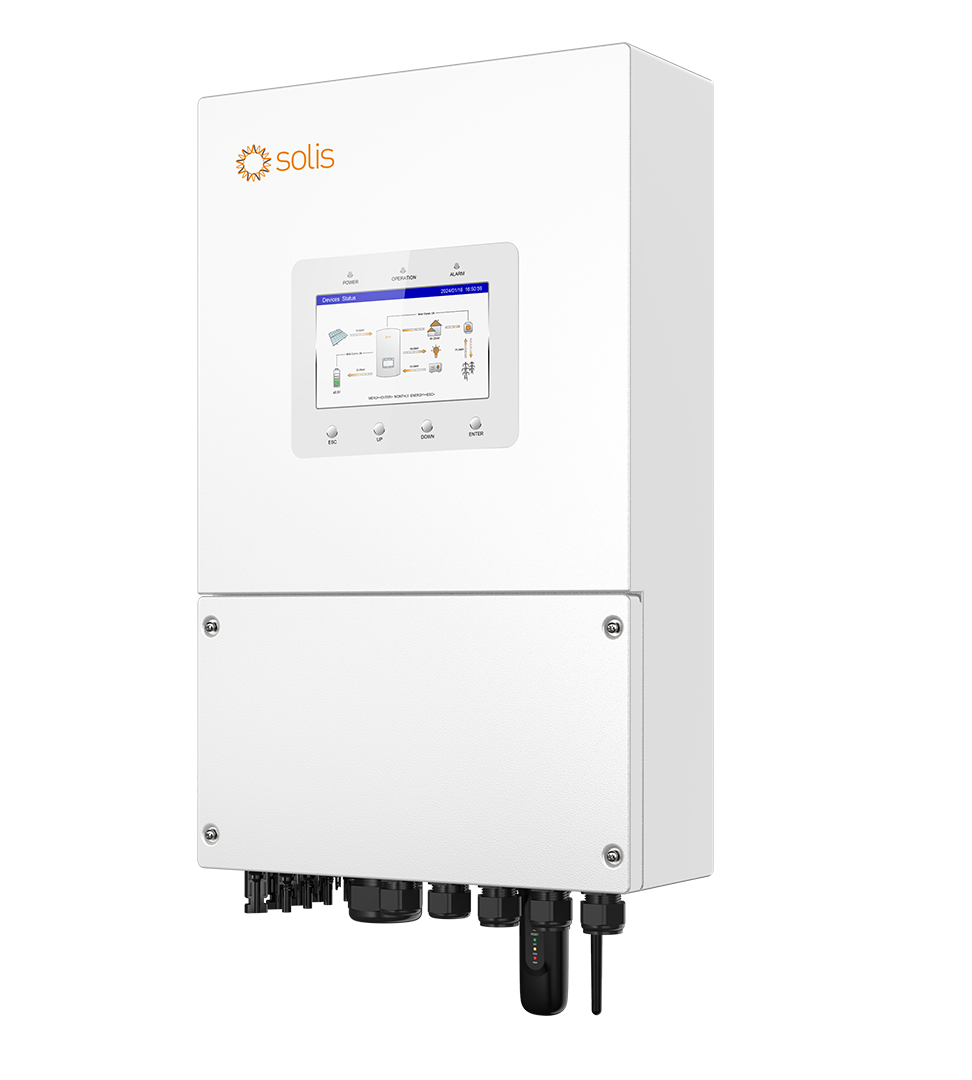

S6-EH2P(5-8)K02-SV-YD-L

5K/6K/7.5K/8K

The S6-EH2P(5-8)K02-SV-YD-L is a PV hybrid inverter designed for 220V split-phase grids. It supports a string current input of up to 21A, making it compatible with various high-power PV panels. Multiple units can be connected in parallel to create a high-capacity system with a maximum output of 48kW. Additionally, the inverter features a dedicated generator interface for enhanced energy application reliability. This product provides solutions for demanding power scenarios for residential energy storage systems.

Datasheet Download

S6-EH2P(5-8)K-Global-Datasheet-V3.4

More Downloads

Three Phase Low Voltage Energy Storage Inverter

Features

Supports PV input up to 160% of the inverter's rated DC power, maximising solar utilisation
Supports up to 21A PV input current, compatible with the future higher-power PV module
200% overload for 10s in off-grid mode, ensuring stable startup of motors, water pumps and air conditioners
Seamless on/off-grid switching in under 10ms, guaranteeing uninterrupted power supply
Support split-phase unbalanced output, each phase supports output max. 50% rated inverter power
More battery options, compatible with any battery (between 40V-60V)
Supports existing PV grid-tie power connection for export control and off-grid use
Multiple methods of generator connection and auto control, enabling flexible local deployment
Support max 6 pcs in parallel, expanding system capacity
Smart Load management, extending backup time for critical loads
Customizable battery backup level for uninterrupted power
PV only off grid mode, to reduce the initial investment cost
7-inch industrial-grade touchscreen, providing a larger, user-friendly interface for local operation
Ingress protection IP66, adapting to harsh ambient conditions
